current products > adaptors
| TLC Part Number
& Description |
Application
Description |
| AD-2PS11
- Adaptor, AD-2PS11 |
For converting the 2-prong sleeve lamp socket to hold any Generic Single Contact Bayonet (SC Bay) lamps. |
| AD-3PS11
- Adaptor, AD-3PS11 |
For converting the 3-prong sleeve lamp socket to hold any Generic Single Contact Bayonet (SC Bay) lamps. |
| AD-T463-M
- Adaptor, MSBS11 |
For converting the medium screw base lamp socket to hold any Generic Single Contact Bayonet (SC Bay) lamps. |
The first three adaptors are precision made to assure proper filament alignment when using the 1 ¼ inch LCL lamps. The AD-2PS11 and AD-3PS11 Adaptors are stainless steel with a life time warranty. These adaptors are used to convert the older GRS and US&S Color Light Signal that used the now obsolete Sleeve with lug base to hold any standard generic Signal lamp.
The AD-T463-M Adaptor is specially made to prevent the center pin disk from moving, and is used to convert the Medium Screw Lamp Base (same size base and the generic household lamp) to hold the standard generic Signal lamp.
Images:

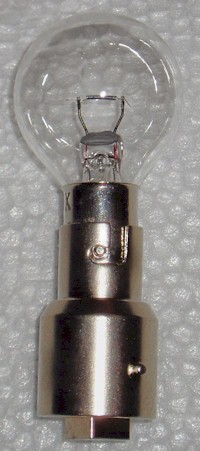

AD-2PS11

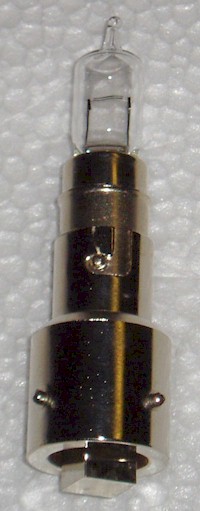

AD-3PS11

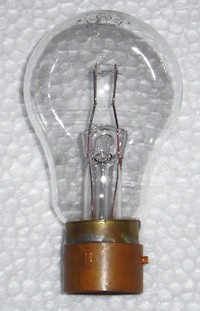

3-Lug Sleeve Lamp
The Lug Sleeve Base Lamp shown above can be replaced with either the T-4 or S-11 Lamp in either of the Applica table number of pin Adaptor. The dimension from the top of the pins to the center of the filament (LCL) on the lug lamp will be the same when using either the S-11 or T-4 Lamp in either of the Adaptors, assuring focal alignment. |

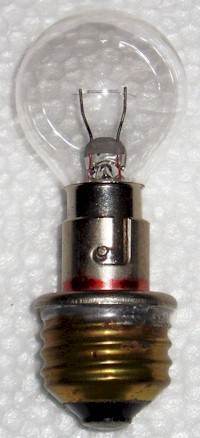

AD-T463-M
This AD-T463-M Adaptor maintains the
same dimension from the bottom of the center contact of the lamp to the center of the filament (LCL) as the MSB Lamps that were used in signals. |
