PRECISION PRE-TESTED RAILWAY SIGNALING
AND TRAIN CONTROL LAMPS





 TransLight Order Number:K-12V25W-RS

 Design Voltage:12

 Design Wattage:25

 Design Amperage:2.1

 Initial L/CP +-10%:350/28

 Glass Shape:S-11

 Filament Type:C-6

 Average Rated Life
     Expectancy (ARLE) Hours:10,000


 Ordering Information:
Lamp, S-11, 12-Volt, 25-Watt, ARLE 10,000 Hours - TLC PN K-12V25W-RS

 Additional Information:
S-11 Gas Filled Railroad Signal Lamp, ISO 9001 QMS Made, Orders must be made in Multiples of 10

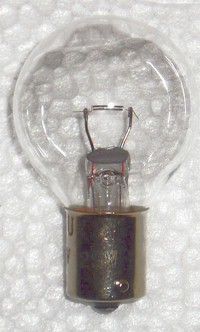

(Click here for large image)
All T-4 and S-11 lamps listed on these sheets have the following design characteristics:
1. Length to Center of Light (LCL) dimension of 1 ¼”, plus/minus 1/64 of an inch.

2. Measurement of Overall Length (MOL), does not exceed the 2 ¼” industrial standard for railway signaling applications.

3. All lamps are clear glass, unless noted – Single Contact Bayonet Bases (SC Bay), made of brass, Nickel or Gold Plated.

4. Shipments are FOB Jacksonville, Florida, Prepaid and added to the Invoice. Credit Card orders accepted.
