PRECISION
PRE-TESTED RAILWAY SIGNALING
AND TRAIN CONTROL LAMPS
|
TransLight Order Number:K-2.9V0.15A-S
Design Voltage:2.9
Design Wattage:0.4
Design Amperage:0.15
Initial L/CP +-10%:9/0.7
Glass Shape:S-8
Filament Type:C-6
Average Rated Life
Expectancy (ARLE) Hours:1,000
Ordering Information:Lamp, S-8, 2.9-Volt, 0.4-Watt, ARLE 1,000 Hours - TLC PN K-2.9V0.15A-S
Additional Information:S-8 Halogen Gas Railroad Signal Lamp, ISO 9001 QMS Made, Orders must be made in Multiples of 10
|

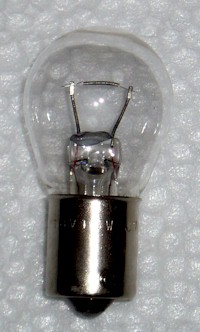

(Click here for large image) |
All T-4 and S-11 lamps listed on these sheets have the following design characteristics:
1. Length to Center of Light (LCL) dimension of 1 ¼”, plus/minus 1/64 of an inch.
2. Measurement of Overall Length (MOL), does not exceed the 2 ¼” industrial standard for railway signaling applications.
3. All lamps are clear glass, unless noted – Single Contact Bayonet Bases (SC Bay), made of brass, Nickel or Gold Plated.
4. Shipments are FOB Jacksonville, Florida, Prepaid and added to the Invoice. Credit Card orders accepted.
|
