PRECISION
PRE-TESTED RAILWAY SIGNALING
AND TRAIN CONTROL LAMPS
|
TransLight Order Number:PG-10V18W-EL
Design Voltage:10
Design Wattage:18
Design Amperage:1.8
Initial L/CP +-10%:225/18
Glass Shape:S-11
Filament Type:C-6
Average Rated Life
Expectancy (ARLE) Hours:100,000
Ordering Information:Lamp, S-11, 10-Volt, 18-Watt, ARLE 100,000 Hours - TLC PN PG-10V18W-EL
Additional Information:S-11 Special Filaments and Gas Premium Series Railroad Signal Lamp, ISO 9001 QMS Made, Orders must be made in Multiples of 10, Premium Grade Lamp and the ARLE is Warranted against Premature Failures
|

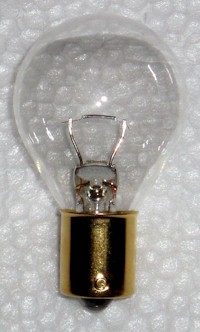

(Click here for large image) |
All T-4 and S-11 lamps listed on these sheets have the following design characteristics:
1. Length to Center of Light (LCL) dimension of 1 ¼”, plus/minus 1/64 of an inch.
2. Measurement of Overall Length (MOL), does not exceed the 2 ¼” industrial standard for railway signaling applications.
3. All lamps are clear glass, unless noted – Single Contact Bayonet Bases (SC Bay), made of brass, Nickel or Gold Plated.
4. Shipments are FOB Jacksonville, Florida, Prepaid and added to the Invoice. Credit Card orders accepted.
|
