PRE-TESTED RAILWAY SIGNALING
AND TRAIN CONTROL LAMPS
All T-4 and S-11 lamps listed on these sheets have the following design characteristics:
TransLight Order Number:H-12V25W-RS
Initial L/CP +-10%:350/28
Average Rated Life
Expectancy (ARLE) Hours:15,000

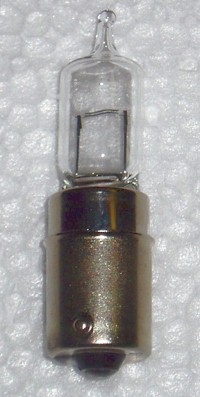

Lamp, T-4, 12-Volt, 25-Watt, ARLE 15,000 Hours - TLC PN H-12V25W-RS
T-4 Halogen Gas Railroad Signal Lamp, American Made, Orders must be made in Multiples of 10, T-4 Type Signal Lamps - ANSI QMS
(Click here for large image)
1. Length to Center of Light (LCL) dimension of 1 ¼”, plus/minus 1/64 of an inch.
SPECIAL NOTE - Glass Bulbs Are General Electric 180 Aluminosilicate Glass - No Special Handling Required
2. Measurement of Overall Length (MOL), does not exceed the 2 ¼” industrial standard for railway signaling applications.
3. All lamps are clear glass, unless noted – Single Contact Bayonet Bases (SC Bay), made of brass, Nickel or Gold Plated.
4. Shipments are FOB Jacksonville, Florida, Prepaid and added to the Invoice. Credit Card orders accepted.
